鋁包鋼芯高強度鋁合金絞線

產品類別：鋁包鋼絞線

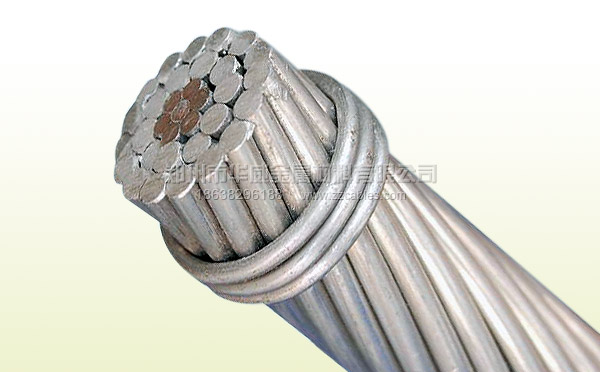

產品名稱：鋁包鋼芯高強度鋁合金絞線
點擊次數：
摘要：
鋁包鋼芯高強度鋁合金絞線：鋁包鋼芯高強度鋁合金架空導線。在鋁合金桿中添加高強度稀土元素，使其強度高于普通鋁合金絞線，是高強度鋁合金絞線和鋁包鋼絞線的結合。

鋁包鋼芯高強度鋁合金絞線的參數和性能：

JLHA2/LB1A、JLHA2/LB14鋁包鋼芯鋁合金絞線性能參數

標稱截面	結構		計算截面			外徑	20℃直流電阻		額定抗拉力		單位重量
	結構		計算截面				JLHA2		JLHA2		JLHA2
	鋁	鋼	鋁	鋼	合計		LB1A	LB14	LB1A	LB14	LB1A	LB14
50/30	12/2.32	7/2.32	50.73	29.59	80.32	11.60	0.5337	0.5664	50.47	56.69	336	352
70/40	12/2.72	7/2.72	69.73	40.67	110.40	13.60	0.3883	0.4121	69.37	77.92	462	484
95/15	26/2.15	7/1.67	94.39	15.33	109.70	13.61	0.3311	0.3374	46.24	49.46	362	371
95/20	7/4.16	7/1.85	95.14	18.82	114.00	13.87	0.3228	0.3302	50.65	54.60	386	397
95/55	12/3.20	7/3.20	96.51	56.30	152.80	16.00	0.2805	0.2977	96.03	104.48	639	670
120/7	18/2.90	1/2.90	118.90	6.61	125.50	14.50	0.2729	0.2747	43.01	44.40	371	375
120/20	26/2.38	7/1.85	115.70	18.82	134.50	15.07	0.2701	0.2752	56.69	60.64	444	455
120/25	7/4.72	7/2.10	122.50	24.25	146.80	15.74	0.2507	0.2564	65.24	70.33	497	511
120/70	12/3.60	7/3.60	122.20	71.25	193.50	18.00	0.2216	0.2351	117.27	127.25	809	849
150/8	18/3.20	1/3.20	144.80	8.04	152.80	16.00	0.2241	0.2256	52.36	53.57	452	458
150/20	24/2.78	7/1.85	145.70	18.82	164.70	16.67	0.2170	0.2203	65.57	69.52	527	537
150/25	26/2.70	7/2.10	148.86	24.25	173.11	17.10	0.2100	0.2140	73.06	78.16	572	583
150/35	30.2.50	7/2.50	147.26	34.36	181.62	17.50	0.2069	0.2125	84.61	91.82	634	654
185/10	18/3.60	1/3.60	183.20	10.18	193.40	18.00	0.1771	0.1783	65.65	67.07	572	577
185/25	24/3.15	7/2.10	187.00	24.25	211.30	18.90	0.1690	0.1716	84.27	89.36	677	693
185/30	26/2.98	7/2.32	181.30	29.59	210.90	18.88	0.1723	0.1756	88.99	95.21	697	713
185/45	30/2.80	7/2.80	184.73	43.10	227.83	19.60	0.1650	0.1694	106.21	115.26	796	810
210/10	18/3.80	1/3.80	204.10	11.34	215.50	19.00	0.1590	0.1600	72.68	74.72	637	643
210/25	24/3.33	7/2.22	209.00	27.10	236.10	19.98	0.1512	0.1535	94.18	99.87	756	771
210/35	26/3.22	7/2.50	211.70	34.36	246.10	20.38	0.1476	0.1504	103.68	110.90	812	831
210/50	30/2.98	7/2.98	209.20	48.82	258.10	20.86	0.1457	0.1496	120.30	130.55	901	928
240/30	24/3.60	7/2.40	244.30	31.67	276.00	21.60	0.1294	0.1314	110.07	116.72	884	901
240/40	26/3.42	7/2.66	238.80	38.90	277.70	21.66	0.1308	0.1333	117.13	125.30	917	939
240/55	30/3.20	7/3.20	241.30	56.30	297.80	22.40	0.1263	0.1297	138.74	147.19	1039	1070
300/15	42/3.O0	7/1.67	296.90	15.33	312.20	23.01	0.1097	0.1104	105.98	109.20	921	930
300/20	45/2.93	7/1.95	303.40	20.91	324.30	23.43	0.1067	0.1076	114.60	118.99	976	988
300/25	48/2.85	7/2.22	306.20	27.10	333.30	23.76	0.1050	0.1061	122.85	128.54	1025	1040
300/40	24/3.99	7/2.66	300.10	38.90	339.00	23.94	0.1053	0.1069	135.21	143.38	1085	1107
300/50	26/3.83	7/2.98	299.50	48.82	348.40	24.26	0.1043	0.1063	146.94	157.19	1150	1176
300/70	30/3.60	7/3.60	305.40	71.25	376.60	25.20	0.0998	0.1025	171.32	181.29	1315	1355
400/20	42/3.51	7/1.95	406.40	20.91	427.30	26.91	0.0801	0.0806	144.98	149.37	1260	1273
400/25	45/3.33	7/2.22	391.90	27.10	419.00	26.64	0.0826	0.0833	148.13	153.82	1262	1277
400/35	48/3.22	7/2.50	390.90	34.36	425.20	26.82	0.0823	0.0831	156.55	163.76	1307	1326
400/50	54/3.07	7/3.07	399.70	51.82	451.50	27.63	0.0793	0.0805	180.10	190.98	1448	1477
400/65	26/4.42	7/3.44	398.90	65.06	464.00	28.00	0.0783	0.0798	194.45	205.51	1532	1568
400/95	30/4.16	19/2.50	407.80	93.27	501.00	29.14	0.0749	0.0768	232.23	251.81	1746	1798
500/35	45/3.75	7/2.50	497.00	34.36	531.40	30.00	0.0652	0.0657	187.85	195.06	1600	1619
500/45	48/3.60	7/2.80	488.60	43.10	531.70	30.00	0.0658	0.0665	195.86	204.91	1635	1659
500/65	54/3.44	7/3.44	501.90	65.06	566.90	30.96	0.0631	0.0641	224.83	235.89	1818	1853
630/45	45/4.20	7.2.80	623.50	43.10	666.60	33.60	0.0519	0.0524	235.65	244.70	2007	2030
630/55	48/4.12	7/3.20	639.90	56.30	696.20	34.32	0.0502	0.0508	256.33	264.78	2141	2171
630/80	54/3.87	19/2.32	636.20	80.32	715.50	34.82	0.0499	0.0506	284.06	300.93	2290	2340
800/55	45/4.80	7/3.20	814.30	56.30	870.60	38.40	0.0398	0.0401	307.78	316.22	2622	2653
800/70	48/4.63	7/3.60	808.20	71.25	879.40	38.58	0.0398	0.0402	319.64	329.62	2704	2739
800/100	54/4.33	19/2.60	795.20	100.90	896.10	38.98	0.0399	0.0405	355.66	376.85	2868	2919
